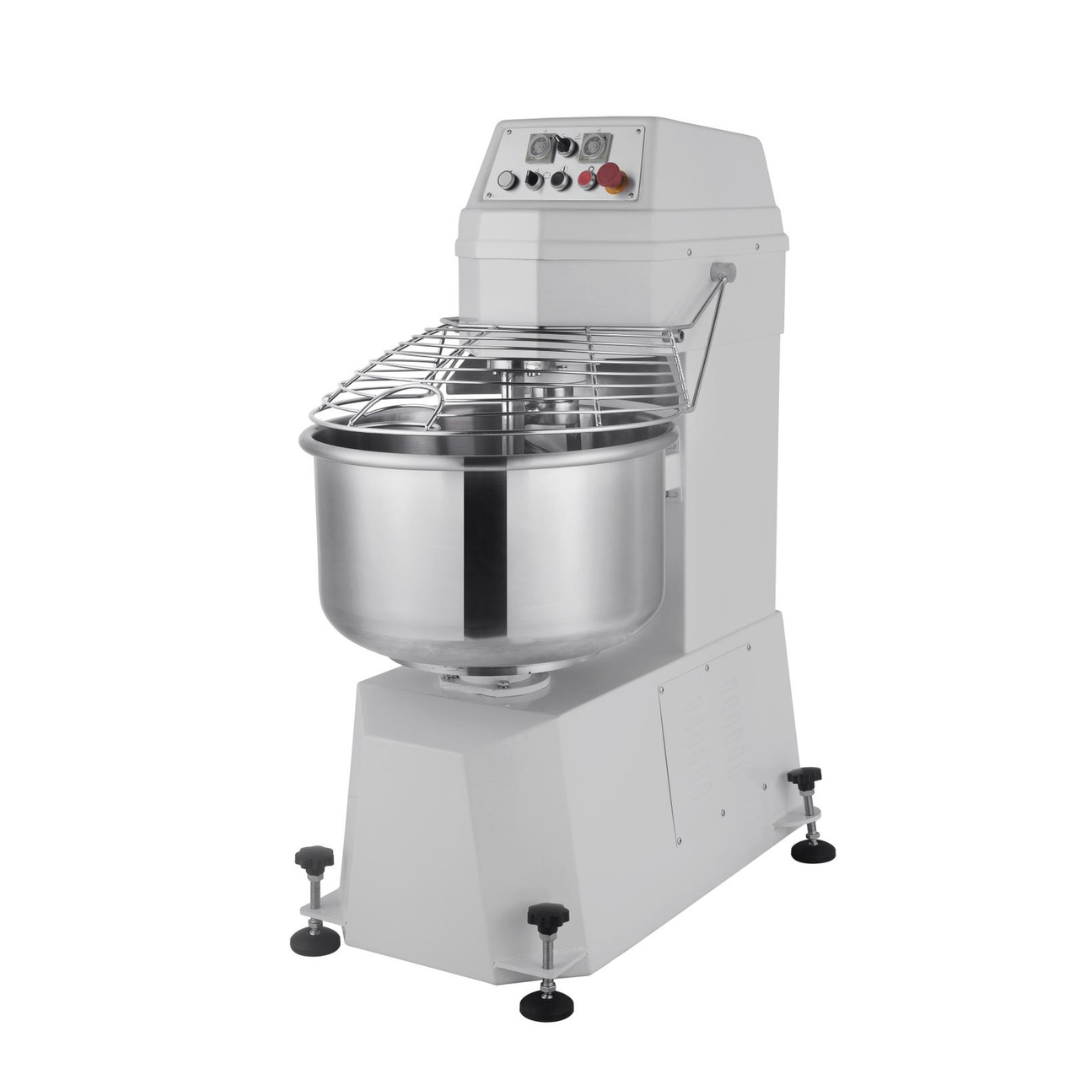

271021 - Floor Standing Heavy-Duty Spiral Mixer 130 Litres

Model Number: HM-GM-50B

This new multi-purpose Hamoki HM-GM Spiral Mixer is a robust, heavy-duty, and versatile appliance designed to meet the demanding needs of commercial kitchens, food processing factories, and even for material preparation in medicine-making or chemical-working facilities.

This mixer features a sturdy structure, with spiral mixing arms that efficiently knead, mix and blend various dough types and ingredients. Equipped with two-speed settings, this product offers flexibility in mixing capabilities, allowing users to choose between a slower speed for delicate dough or a faster speed for heavier, denser mixtures. The spiral design ensures thorough and consistent mixing, producing high-quality dough with ideal texture and gluten development or seamlessly blended medicinal mixtures.

The floor-standing design with two directed casters, one mecanum wheel and four regulating screws (front and back) provides stability and support for handling larger batches of dough, making this mixer suitable for high-capacity production. Additionally, it's engineered with safety features and easy-to-use controls, ensuring a user-friendly experience while prioritising operational safety.

• Bowl direction reversion
• Stainless steel bowl
• Stainless steel guard for safety
• Emergency stop button fitted

• Arm and bowl can be rotated at the same time, improving mixing times
• Motor overload protection
• Settable programs for automatic operation
• Indicator lights and adjustable timers

• Fitted castors for easy movement

This product is covered with a Manufacturer’s 1 Years Parts Warranty.

Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.

DIMENSIONS: 1100 x 700 x 1500 mm
BOWL CAPACITY: 130 L
KNEADING CAPACITY: 50 KG
ROTATION LOW SPEED: 120 RPM
ROTATION HIGH SPEED: 240 RPM
BOWL SPEED: 20-40 RPM
WEIGHT: 400 KG
POWER: 5.6 kW / 415 V / 50 Hz
CONNECTION: Three-phase hard wired

INSTRUCTION MANUAL
CIRCUIT DIAGRAM
EXPLODED DRAWING & PARTS LIST
