Passthrough Dishwasher Premium 500mm Basket 48 Baskets/Hour Break Tank Drain Pump Detergent Dosing Pump 230 V | Adx10 Mb

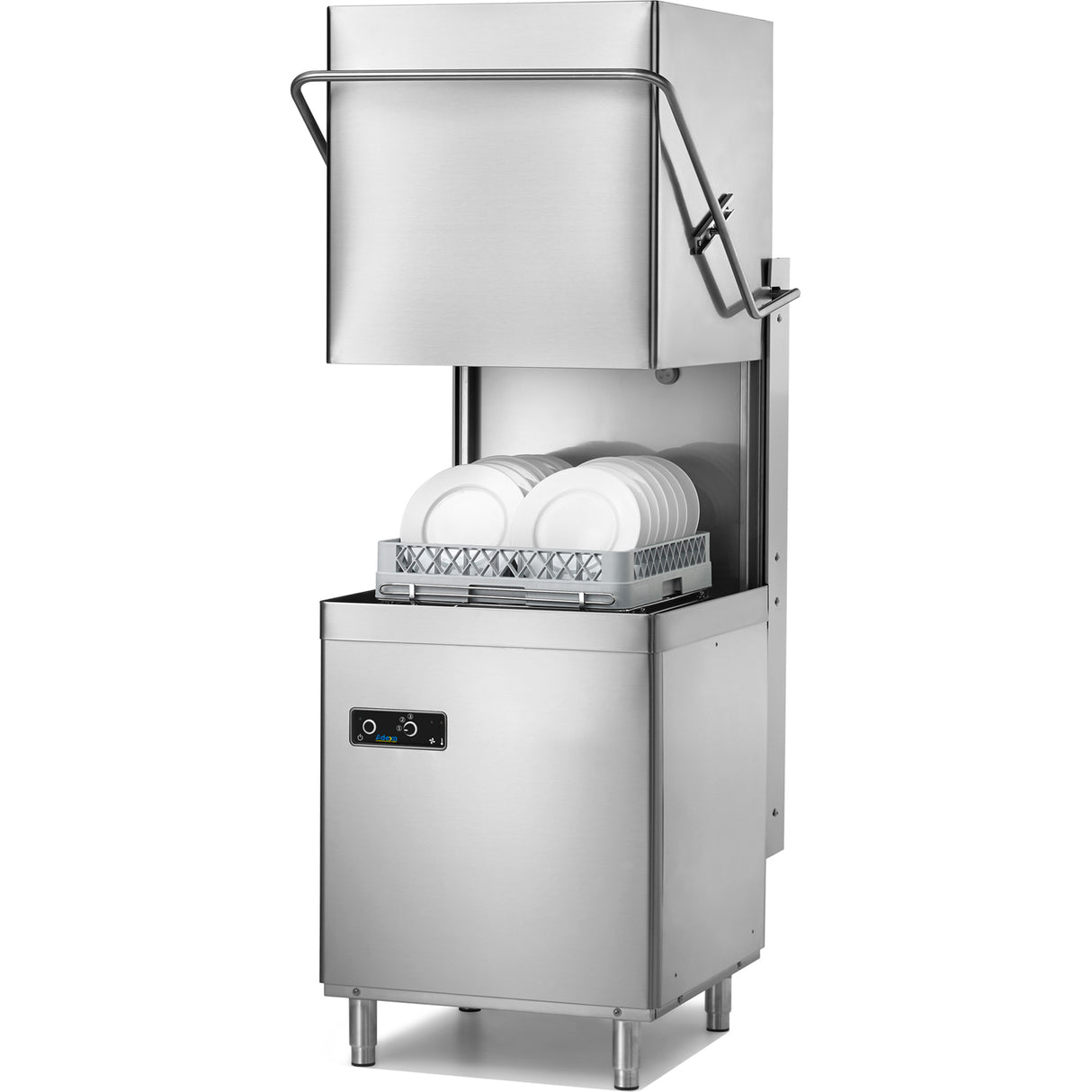

This premium hood-type dishwasher offers outstanding professional performance and exceptional economical operation for restaurants, hotels, and other catering businesses.

This item includes a break tank as standard. The break tank is a separate reservoir with an air overflow that prevents contaminated water, food debris, or bacteria from entering your freshwater supply — ensuring maximum hygiene for clean glassware and crockery. Under UK Water Board regulations, a break tank is required for all high-risk businesses such as nurseries, schools, hospitals, and care homes.

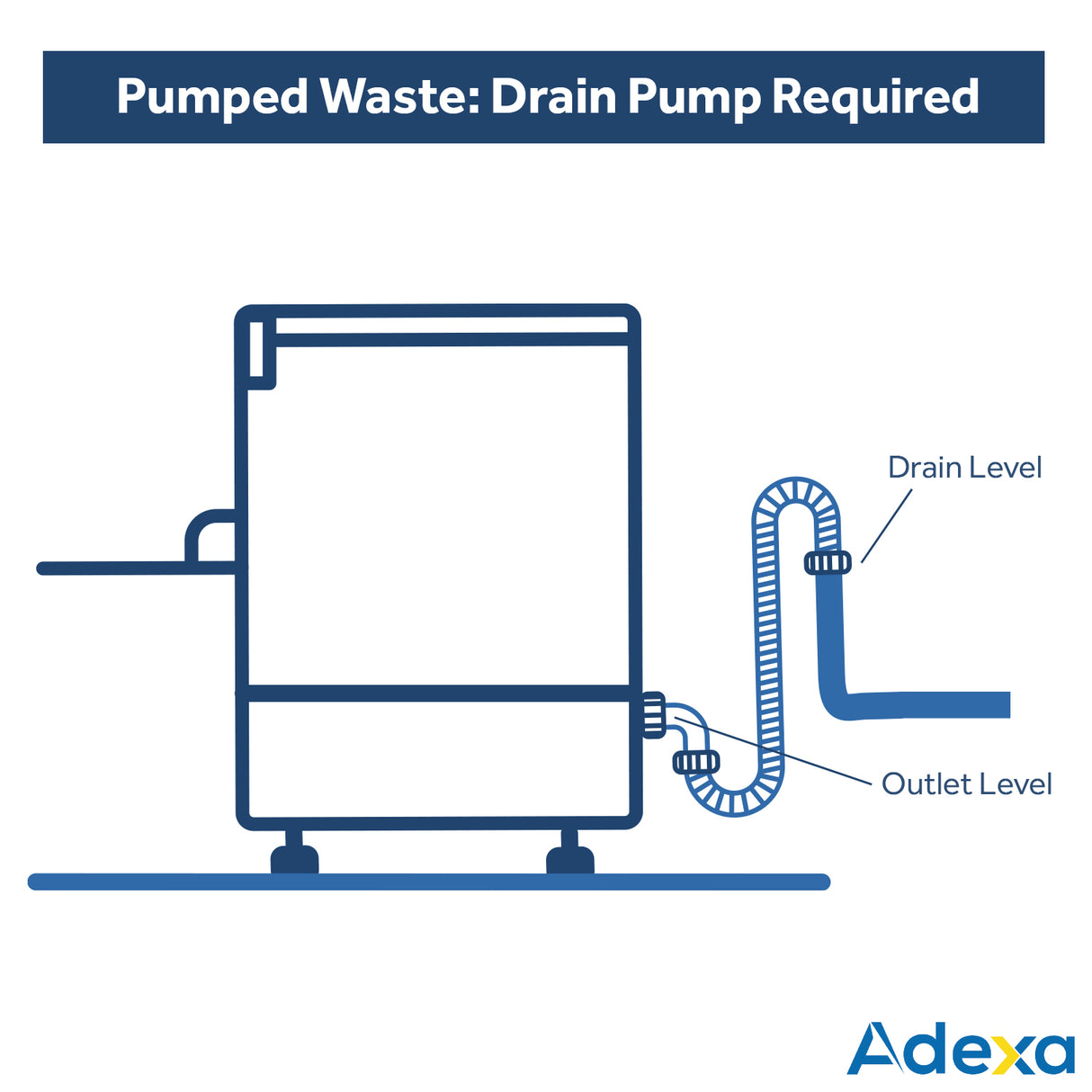

This unit also includes a drain pump for efficient waste disposal. Activated at the end of the washing cycle, the pump removes dirty water — essential when the drain is level with or higher than the machine's outlet.

• Single-skinned body and double-skin doors
• Made in Italy
• Power supply: 230V / 1N / 50Hz
• Includes break tank
• Includes drain pump
• Detergent dosing pump included
• Easy-clean filter system
• Two stainless-steel wash arms and two composite rinse arms — independent, rotary, and removable without tools
• Inclined wash tank for efficient drainage
• Self-draining inclined wash pump
• Tank and hood made of AISI 304 stainless steel
• Adjustable rinse aid dosing unit
• Auto-start hood
• Electromechanical control panel

Washing Cycles

• Cycle 1: 75 sec (48 baskets/hour)
• Cycle 2: 120 sec (30 baskets/hour)
• Cycle 3: 180 sec (20 baskets/hour)

Technical Specifications

• Basket size: 500 x 500 mm
• Wash pump power: 1.1 kW
• Wash pump capacity: 503 litres/min
• Tank heating element: 3 kW
• Boiler heating element: 6 kW
• Total power: 7.1 kW
• Water supply temperature: +55°C
• Water pressure: 200–400 kPa
• Water hardness: min. 7°f / max. 12°f
• Washing temperature: +55°C
• Rinsing temperature: +85°C
• Tank capacity: 30 litres
• Boiler capacity: 7 litres
• Water consumption per cycle: 2.8 litres
• Sound emission: 69 dB(A)

Included Accessories

• 1 x 18-plate rack
• 1 x universal basket
• 1 x cutlery rack
• Hoses: water connection, drain, and transparent rinse product hose

Click here to download User Manual

Click here to download Instructions for Adjusting Rinse Aid and Detergent Dispensers

Click here to download Declaration of Conformity

Please see under 'Specification' for detailed information.
