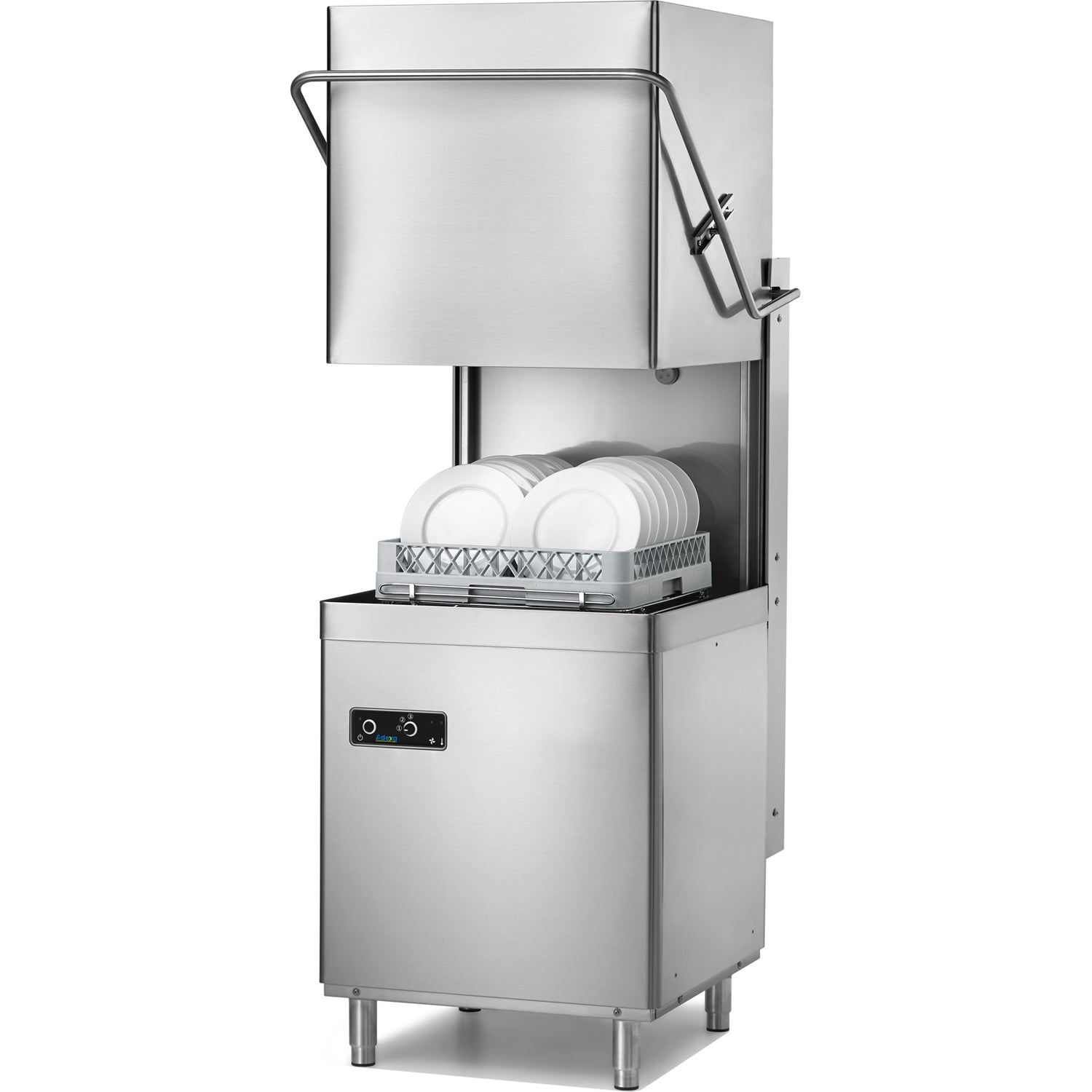

Passthrough Dishwasher Premium 500mm Basket 48 Baskets/Hour Built In Water Softener Break Tank Drain Pump Detergent Dosing Pump 400 V | Adx10 Tbws

This premium hood type dishwasher offers outstanding professional performance and exceptional economical operation for restaurants, hotels, and other catering businesses. It includes a break tank as standard, which prevents contaminated water, food debris, or bacteria from entering your freshwater supply—ensuring maximum hygiene. A break tank is required for all high-risk businesses under UK Water Board regulations, including nurseries, schools, hospitals, and care homes.

• Single-skinned body and double skin doors
• Made in Italy
• Power supply: 400V / 3N / 50Hz
• Built-in water softener
• Break tank included

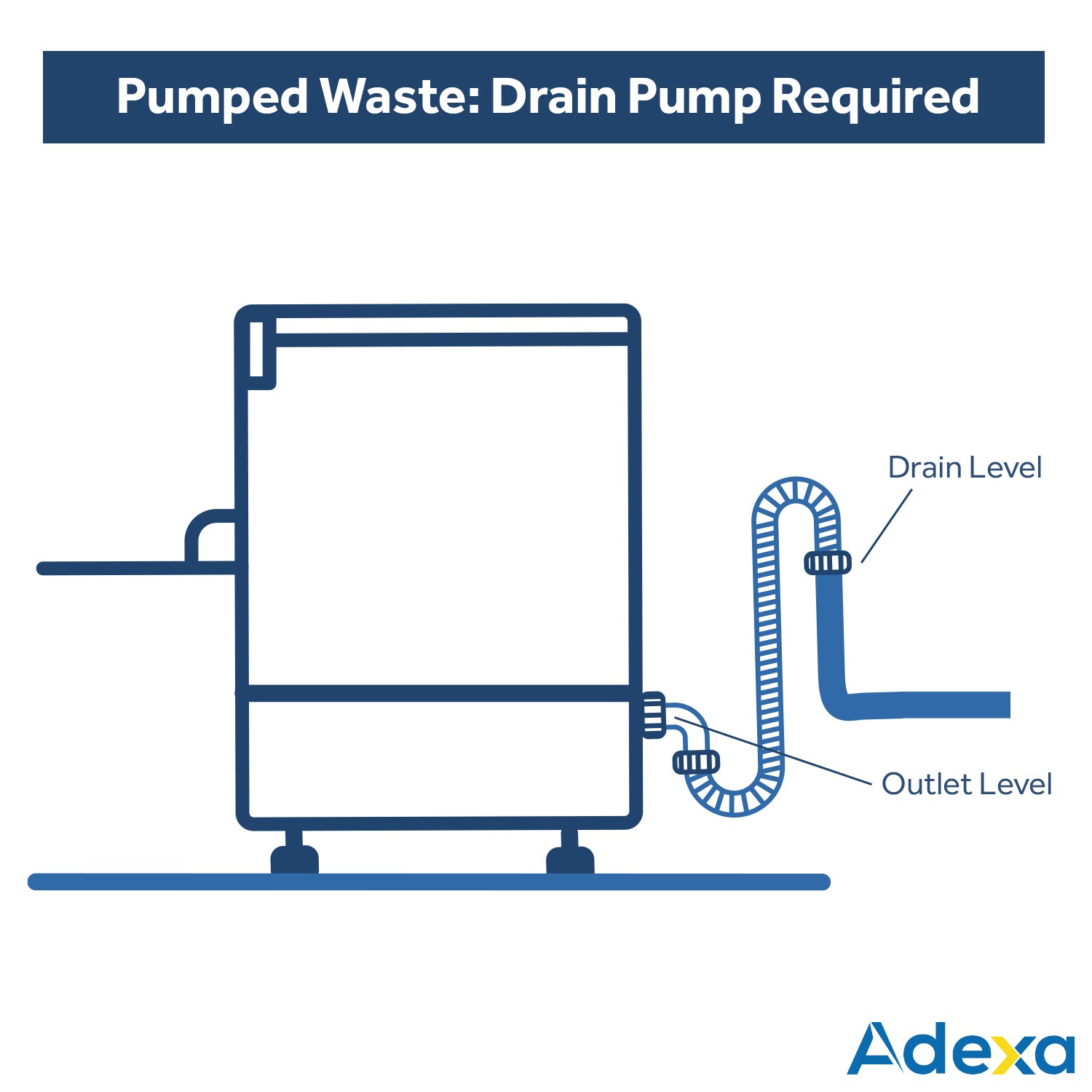

• Drain pump included
• Detergent dosing pump included
• Easy-clean filter system
• Two stainless-steel wash arms and two composite rinse arms – independent, rotary, and removable without tools
• Inclined wash tank with self-draining pump
• Tank and hood made of AISI 304 stainless steel
• Adjustable rinse aid dosing unit
• Auto-start hood
• Electromechanical control panel

Washing Cycles

• Cycle 1: 75 sec (48 baskets/hour)
• Cycle 2: 120 sec (30 baskets/hour)
• Cycle 3: 180 sec (20 baskets/hour)

Specifications

• Basket size: 500 x 500 mm
• Wash pump power: 1.1 kW
• Wash pump capacity: 503 litres/min
• Tank heating element: 3 kW
• Boiler heating element: 6 kW
• Total power: 7.1 kW
• Water supply temperature: +55°C
• Water pressure: 200–400 kPa
• Water hardness: min. 7°f / max. 12°f
• Washing temperature: +55°C
• Rinsing temperature: +85°C
• Tank capacity: 30 litres
• Boiler capacity: 7 litres
• Water consumption per cycle: 2.8 litres
• Sound level: 69 dB(A)

Included Accessories

• 1 x 18-plate rack
• 1 x universal basket
• 1 x cutlery rack
• Hoses: Water connection, drain, and transparent rinse product hose
