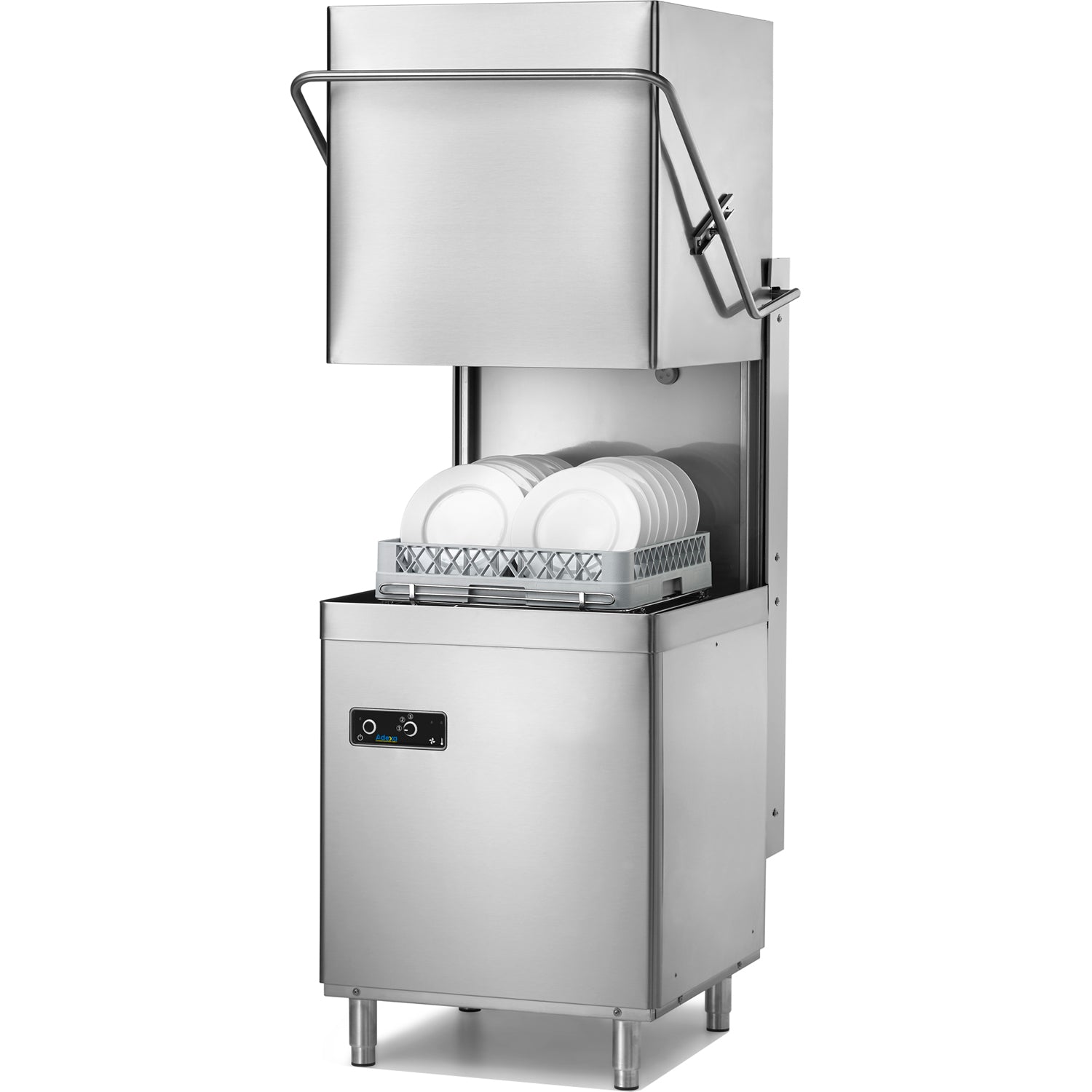

Passthrough Dishwasher Premium 500mm Basket 48 Baskets/Hour Drain Pump Detergent Dosing Pump 230 V | Adx10 M

This premium hood type dishwashers offers outstanding professional performance and exceptional economical operation for restaurants, hotels and other catering businesses.

• Single-skinned body and double skin doors.
• Made in Italy

• Power supply: 230V / 1N / 50Hz
• With drain pump
• With detergent dosing pump
• Easy-clean-filter system.

• Two stainless-steel wash arms and two rinse arms of composite material, independent and rotary, removable without tools.

• Wash tank inclined to filters.

• Self-draining inclined wash pump.

• Tank and hood made of stainless-steel AISI 304.

• Adjustable rinse aid dosing unit.

• Auto-start hood.

• Electromechanical control panel.

• Washing Cycle 1: 75 sec (48 baskets/h)

• Washing Cycle 2: 120 sec (30 baskets/h)

• Washing Cycle 3: 180 sec (20 baskets/h)

• Basket size: 500 x 500 mm

• Wash pump power: 1.1 kW

• Wash pump capacity: 503 litres/min

• Element power (tank): 3 kW

• Element power (boiler): 6 kW

• Water supply temperature: +55°C

• Water supply pressure: 200 - 400 kPa

• Water supply hardness max: min. 7 max. 12°f

• Washing temperature: +55°C

• Rinsing temperature: +85°C

• Capacity tank: 30 litres

• Capacity boiler: 7 litres

• Water consumption per cycle: 2.8 litres

• Sound emission: 69 dB(A)

• Total power: 7.1 kW

Included accessories

• Baskets: 1x18 plates rack, 1 universal basket, 1 cutlery rack

• Hoses (1 for each): Water connection, Drain, Transparent rinsing product


Documents

• Click here to download User Manual
• Click here to download Instructions for Adjusting Rinse Aid and Detergent Dispensers

• Click here to download Declaration of Conformity

Please see under 'Specification' for detailed
information.
