Single Fan Air Cooler Evaporator (Freezing &Amp; Chilling Applications) 660x430x480mm | Gldd15301 E

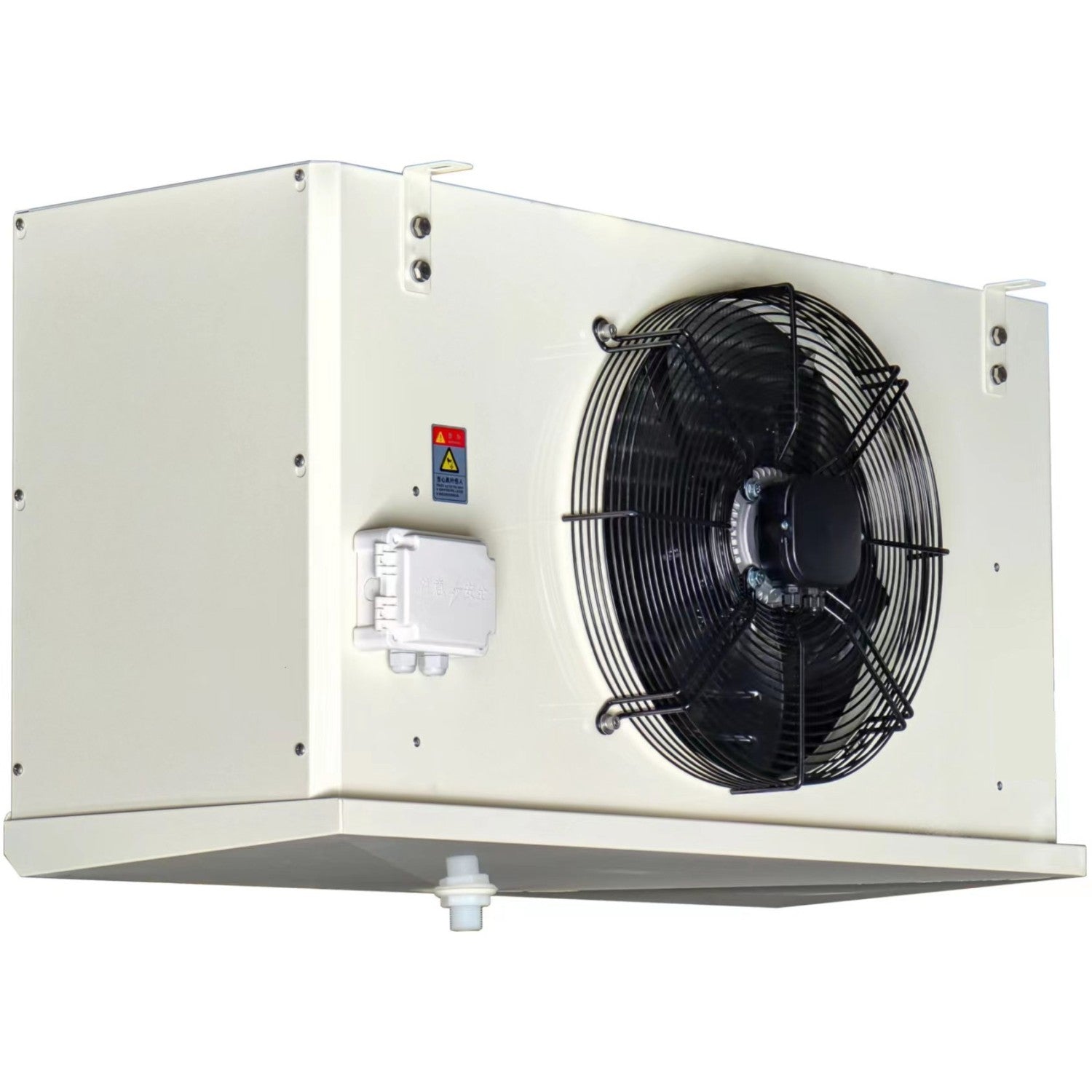

The GLDD15301E Air Cooler Evaporator is part of the S Series with a single fan, designed for use in small to medium-sized cold rooms. Compatible with condensing units such as GLBYTCR10EL and GLBYTCR20EL, it supports both freezing (-18 °C) and chilling (+2 °C ~ +8 °C) applications.

Built with high efficiency and durability in mind, this compact unit provides consistent airflow and cooling, making it ideal for food storage, hospitality, and commercial cold rooms. With its 1.5HP matched condensing unit such as GLSN15EL, reliable defrost system, and optimized coil design, the GLDD15301E ensures stable temperature control and dependable performance in demanding environments.

Key Features

• Dimensions (W×D×H): 660 × 430 × 480 mm
• Matched Condensing Unit: Freezing -18 °C (1.5HP) , such as GLSN15EL
• Defrost Power: 1700 W
• Cooling Capacity: Tc=0 °C: 3.5 kW, Tc=-18 °C: 2.3 kW
• Air Flow: 1200 m³/h for efficient cooling
• Motor: 65 W × 1 (single motor)
• Air Blowing Distance: 6 m
• Heat Exchange Surface: 6.1 m²
• Tube Volume: 1.70 dm³
• Applications: Suitable for freezing rooms (up to 7–10 m³) and chilling rooms (12–17 m³ depending on condensing unit)
• Construction: Durable build, easy to install, compatible with Danfoss expansion valves

Please see under 'Specification' for detailed
information.
