Caterzone | SKU:
GBD 560

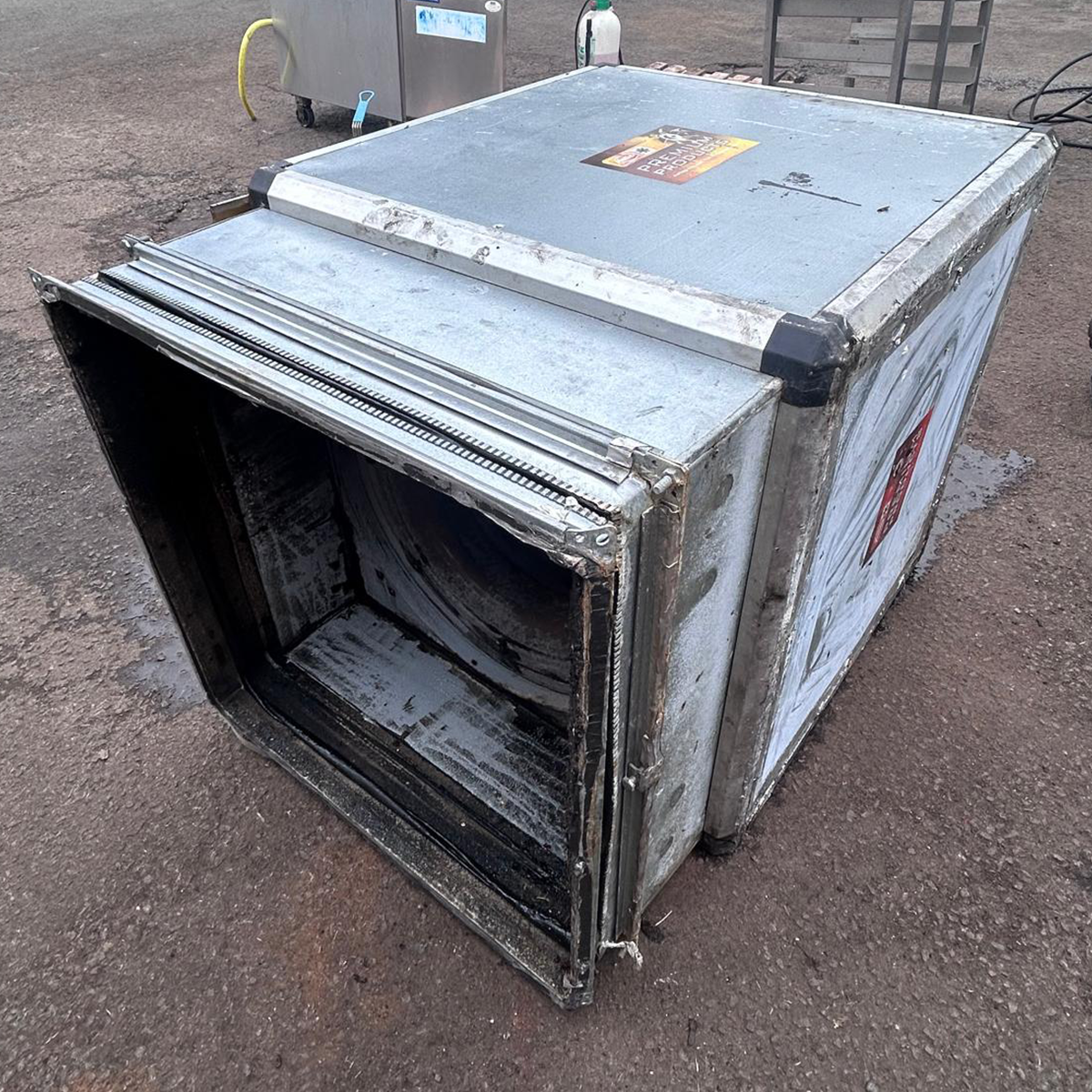

USED - GBD 560/4/4 – 3PH GigaBox Centrifugal Fan – Helios - Fan for ventilation system
£500.00 ex. VAT
£600.00
Unit price
/
Unavailable
New arrival
USED - GBD 560/4/4 – 3PH GigaBox Centrifugal Fan – Helios - Fan for ventilation system is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
USED - GBD 560/4/4 – 3PH GigaBox Centrifugal Fan – Helios - Fan for...
£600.00
Unit price
/
Unavailable
Description
Description
Powerful box fans offering for high volumes and high pressure. A fully speed controllable boxed backward curved centrifugal fan range suitable for indoor or outdoor use rated IP55 (weatherproof) able to handle cooking grease and other airborne pollutants.
This fan is suitable for medium to higher airflow volumes against high resistances in every type of ventilation system The ..T120 Range is also suitable for the extraction of dirty, humid and hot air upto a maximum of 120Deg C.
Fully speed controllable
High performance up to 1.889 m3/s.
Powerful backward curved centrifugal fan ideal for all applications.
Can be changed from straight through to side outlet on site
Self-supporting frame construction from aluminium hollow profiles
Double walled side panels with 20mm thick temperature insulating and flame retardent mineral wool
Steel backward curved centrifugal impellor
90 Degree or straight through air path possible. Except T120 range which is only 90 degree air path
T120 range only has motor out of air stream
Suitable for outdoors with appropriate weather cowl
