CED Designline Drop In Ceran Glass Hotplate HP5
£3,332.99 ex. VAT
CED Designline Drop In Ceran Glass Hotplate HP5 is available to order and ships direct from our supplier.
View tiers ▾
- 2 items | Extra 5% Off
- 3–4 items | Extra 7% Off
- 5–9 items | Extra 10% Off
- 10+ items | Extra 15% Off
CED Designline Drop In Ceran Glass Hotplate HP5
CED Designline Drop In Ceran Glass Hotplate HP5 is available to order and ships direct from our supplier.
Description
Description

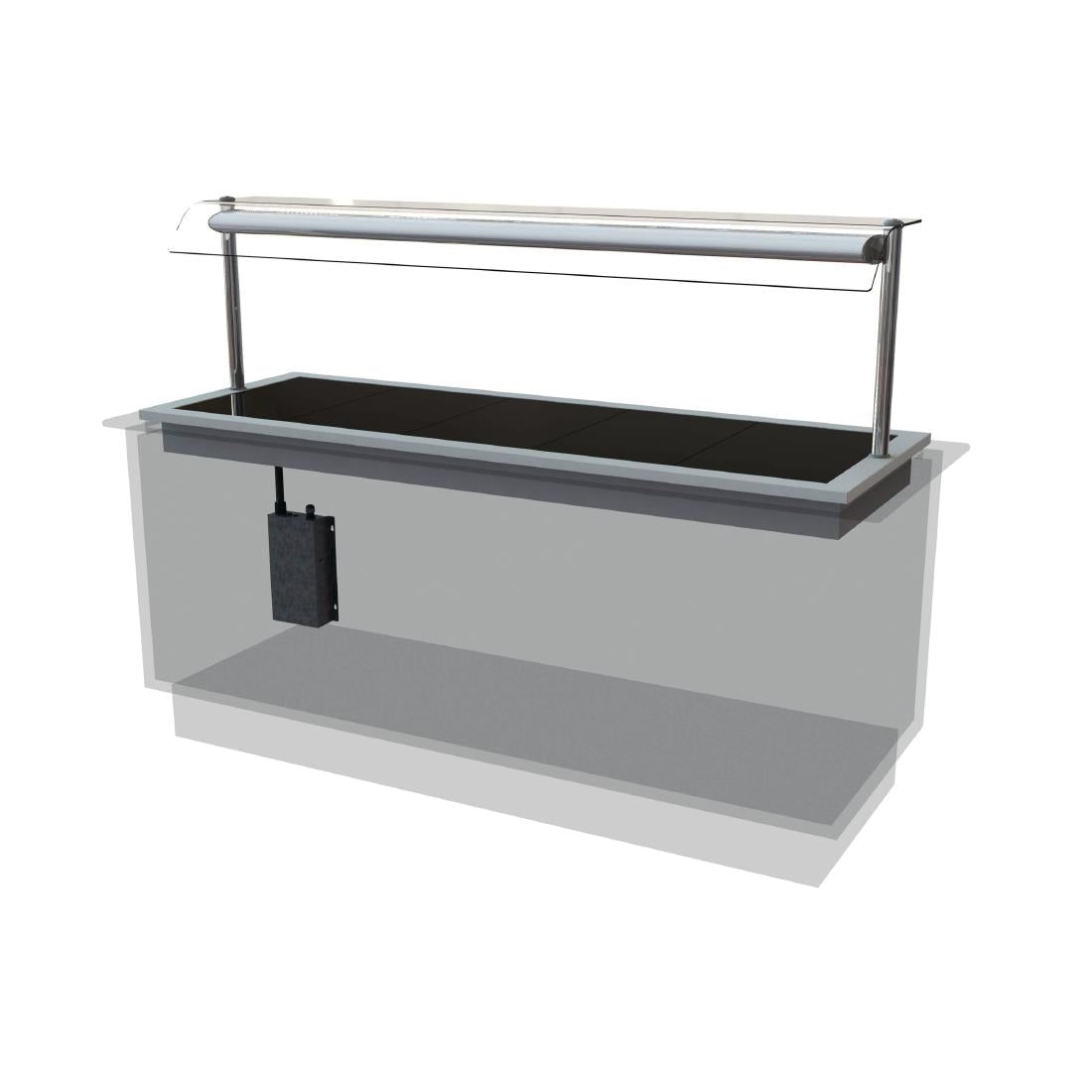

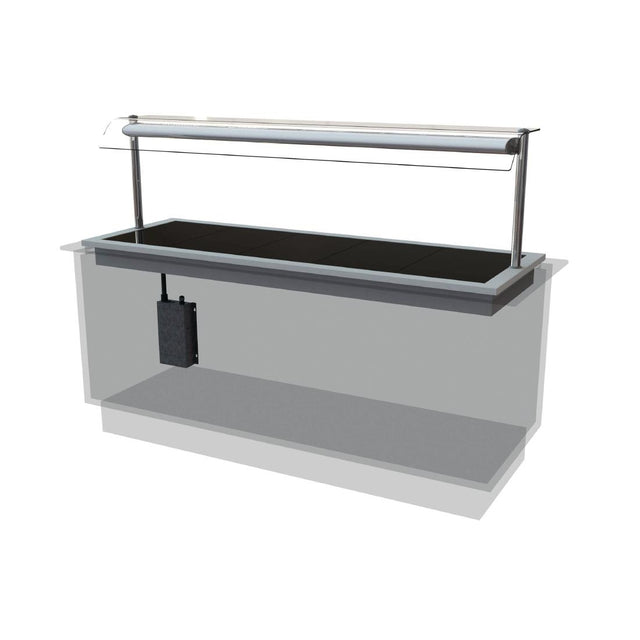

Display, illuminate, heat and protect pre-cooked food with CED's elliptically shaped Designline self help ceran glass hotplate drop in display. This 5/1 Gn size hot display features a 5/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & 2M flexible electrical conduit for hard wiring to a 16 Amp, 230v 3.3KW supply. GN's Sold Separatley.
Key Features
- Curved display in bright polished steel and aluminium profile
- Self help application
- 24 hour operation as standard.
- Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch. (to operator side of display)
- Supplied with lifting kit for installation and concealed control box & 2M flexible electrical conduit for hard wiring to a 3.3KW/16a/230v electrical supply
- Curved glass profile is designed to complement other units within the Designline range
- Features a flat heated ceran glass dish presentation area, heated evenly from underneath by individual heater mat elements
- Product illumination/ surface heat is provided by infra red quartz heat lamps to each 1/1Gn area. Lamps are housed within an elliptical profile gantry and mid shelf
- Gantry fitted with curved toughened sneeze screen glass for food protection.
Specifications
| Dimensions | 535(H) x 1875(W) x 660(D)mm |
|---|---|
| Capacity | 5 x 1/1 GN |
| Power | 3.3kW, 230V, 16A |
| Voltage | 230V |
| Temperature range | 85°C to 110°C |
| Gastronorm size | 1/1 GN full |
| Weight | 73kg |
| Warranty | 1 Year |
Delivery: usually 5-6 weeks from order.
