CED Designline Drop In Dry Heat Bain Marie HBM5
£2,867.99 ex. VAT
CED Designline Drop In Dry Heat Bain Marie HBM5 is available to order and ships direct from our supplier.
View tiers ▾
- 2 items | Extra 5% Off
- 3–4 items | Extra 7% Off
- 5–9 items | Extra 10% Off
- 10+ items | Extra 15% Off
CED Designline Drop In Dry Heat Bain Marie HBM5
CED Designline Drop In Dry Heat Bain Marie HBM5 is available to order and ships direct from our supplier.
Description
Description

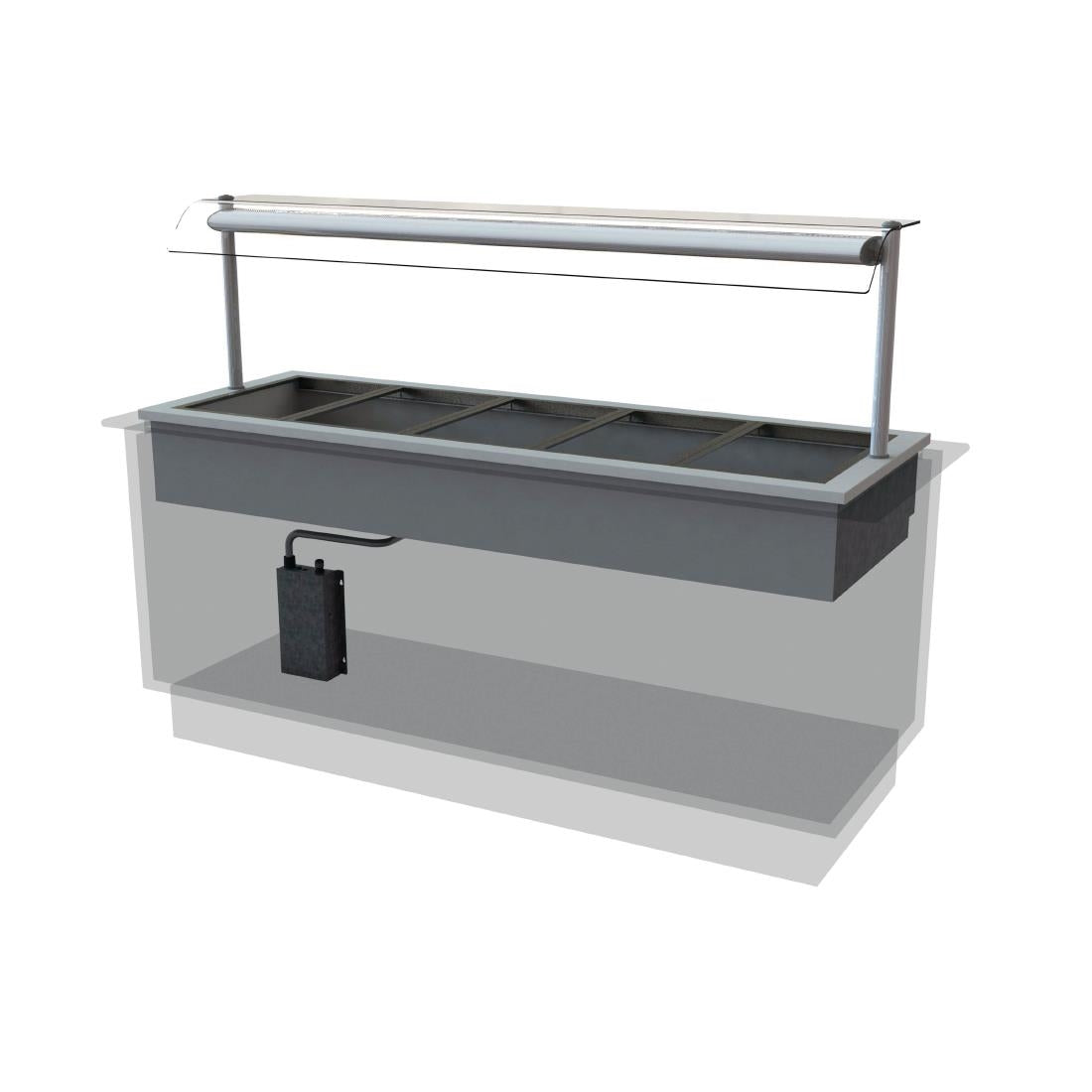

Display, illuminate, heat and protect pre-cooked food with CED's elliptically shaped Designline self help dry heat bain marie drop in display. This 5/1 Gn size hot display features a 5/1Gn heated tank area and individual 1/1Gn gastronorm container support collars, which accept various sized Gn containers up to 150mm deep . The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular removable heater element covers in the heated well give even heat spread & make for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & 2M flexible electrical conduit for hard wiring to a 20 Amp, 230v 4.0KW supply. GN's Sold Separatley.
Key Features
- Presentation area heated evenly from underneath by individual heater mat elements
- Gantry-mounted digital temperature display is easy to monitor
- Simple base heat control panel and top heat control by dimmer switch
- Smart curved display in bright polished steel with aluminium profile
- Curved glass profile complements other Designline units
- 24-hour operation as standard
- Supplied with lifting kit for installation
- Includes concealed control box with a 2m flexible electrical conduit for hard wiring to a 20A 230V 4.0kW supply
- Infrared quartz heat lamps provide surface heat and illumination to each 1/1GN area
- Gantry fitted with curved toughened sneeze screen glass for food protection
- Individual 1/1 gastronorm support collars accept various-sized GN containers up to 150mm deep
Specifications
| Dimensions | 535(H) x 1525(W) x 660(D)mm |
|---|---|
| Power | 4kW, 230V, 13A |
| Voltage | 230V |
| Heat type | Dry Heat |
| Temperature range | 85°C to 110°C |
| Gastronorm size | 1/1 GN full |
| Weight | 66kg |
| Warranty | 1 Year |
Delivery: usually 5-6 weeks from order.
