CED Kubus Drop In Multideck Self Service 1175mm

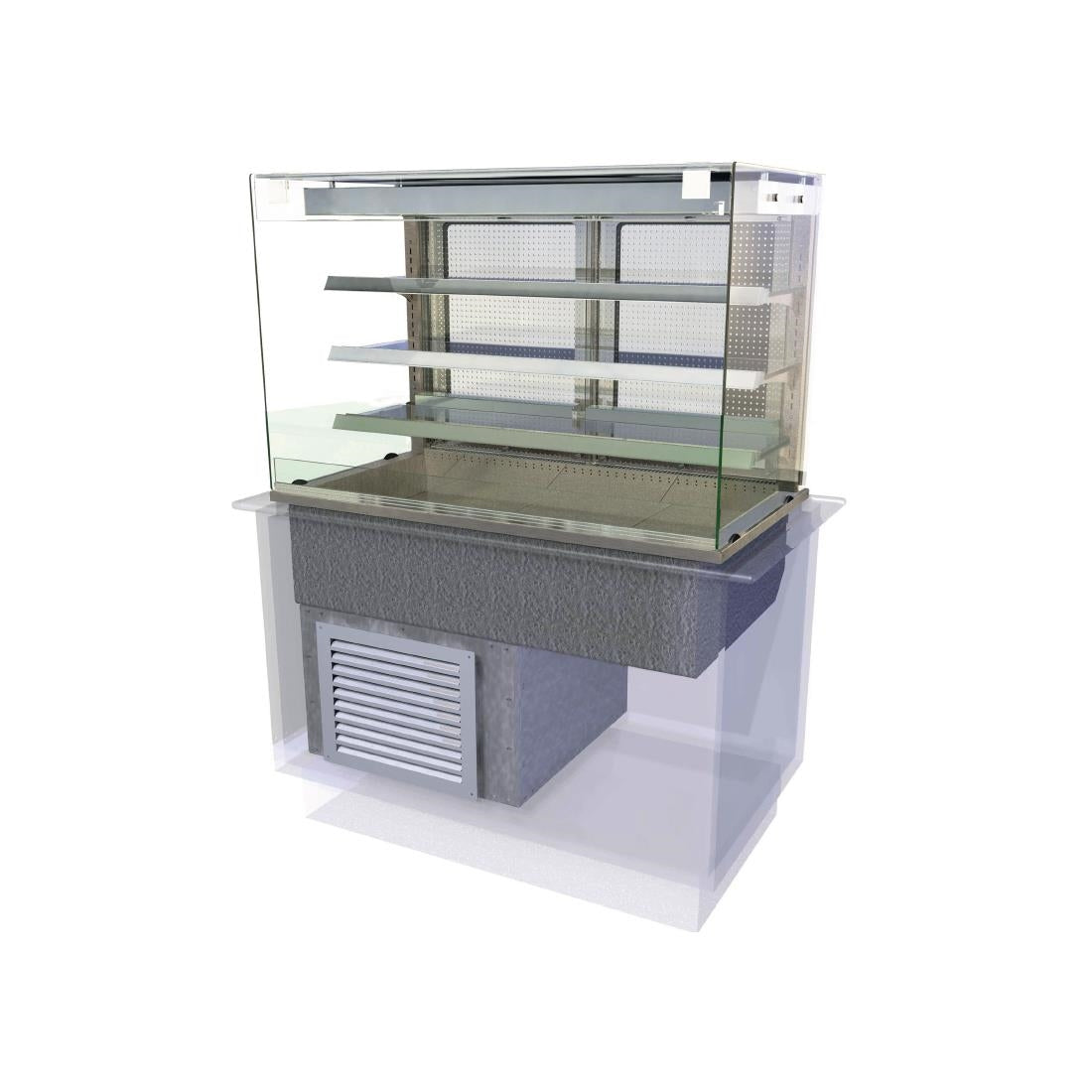

Illuminate, chill and display refrigerated food or drink with CED's rectangular shaped Kubus self help cold multideck (Rear Doors). This energy efficient 3/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) - a solution that's kinder to the environment and your budget. The rear loading self help multideck is designed for use in a free standing countertop and fitting the air grills and rear vent supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Flat, toughened glass sneeze screen and side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adjustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall 'point of sale' display/ticket strip. The 3/1 GN cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the rectangular profile gantry. The gantry also houses an eye level digital temperature display and 'temperature lockable' control panel, to operator side of the display. The multideck has 24 hour operation and holds food core between 2°C to 5°C. The display area has double glazed hinged rear doors for restocking and the self help superstructure is made from bright polished steel and aluminium rectangular profiles. Modular removable deck plates in the chilled multideck make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation.

Key Features

• Rectangular gantry in bright polished steel, & aluminium, housed in a toughened glass roof and side panels
• Each chilled shelf features product stop and 40mm tall 'point of sale' display/ticket strip
• Gantry is fitted with toughened glass sneeze screen and side glass protection to the customer side of the display
• Product illumination is from diffused lighting in the rectangular profile gantry
• Flat glass profile is designed to complement other units within the Kubus range
• Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
• 2 hinged rear double glazed doors
• Special-to-order. Non-returnable
• Drinks display examples: bottled or canned drinks, water, lemonade, wine, juice. Food display examples : Pies, pasties, sausage rolls, baguettes, rolls, cakes & fruit
• Features 3 chilled toughened glass display shelves with adjustable height and angle
• The 3/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
• Assisted service. (Rear doors)

Specifications

Delivery: usually 5-6 weeks from order.
