Classeq | SKU:
G350 - GD 1p13amp

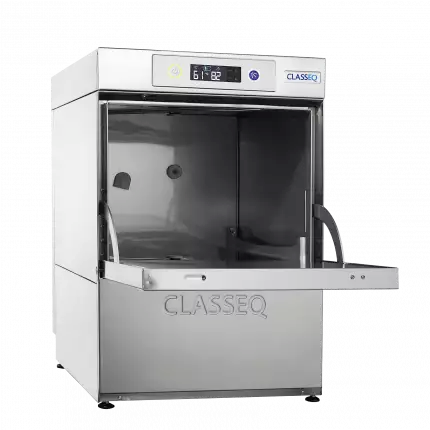

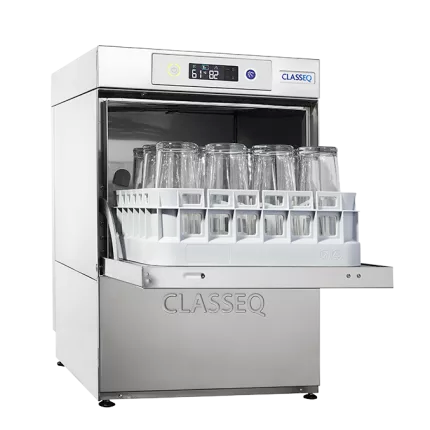

Classeq Glasswashers G350 410x644x517mm
£1,250.00 ex. VAT
Regular price
£1,500.00
Unit price
Sold out
New arrival
Classeq Glasswashers G350 410x644x517mm - G350 Gravity Drain / 1 phrase 13 amp is backordered and will ship as soon as it is back in stock.
View tiers ▾
- 2 items | Extra 5% Off
- 3–4 items | Extra 7% Off
- 5–9 items | Extra 10% Off
- 10+ items | Extra 15% Off
Classeq Glasswashers G350 410x644x517mm - G350 Gravity Drain / 1 phrase 13 amp is backordered and will ship as soon as it is back in stock.
Description
Description
Technical Details - G350
Full technical specification of the G350.
Dimensions
Width: 410 mm
Height: 644 mm
Depth: 517 mm
Door Depth - Open: 810 mm
Basket Size: 350 x 350 mm
Rack Size: 350 x 350 mm
Clear entry height: 273 mm
Performance
Theoretical max racks per hour: 40
Glasses per rack : 12
Number of wash programmes: 2
Duration of wash programmes: 1.5 & 2 minutes
Glasses per hour: 480
Wash tank element: 2 kW
Rinse tank element: 2.6 kW
Wash tank capacity: 5.75 Litres
Rinse tank capacity: 6.5 Litres
Rinse water consumption at 3 bar: 3 Litres
Wash tank temperature: 55 °C
Rinse tank temperature: 70 °C
Wash pump power: 0.25 kW
Hydraulic Specifications
Water supply connection: G3/4" (3/4"Bsp)
Minimum allowed supply water pressure: 2-4 bar
Required water flow rate: 11L/min
Minimum incoming water temperature: 4 °C
Maximum incoming water temperature: 55°C
Gravity drain height (from machine base): 40mm
Pumped drain height (from machine base): 420mm
Drain Size: o40mm
Electrical Specifications
Standard Configuration
Amps Required: 13A (1 phase)
Standard Operating voltage: 220-240V / 1N~ / 50Hz
Total connected load: 2.85kW
Optional Configuration
Amps Required: N/A
Standard Operating Voltage: N/A
Total Connected Load: N/A
Optional Configuration
Amps Required: N/A
Standard Operating Voltage: N/A
Total Connected Load: N/A
Additional Info
Noise level: < 70 dB
Empty Weight: 32kgs
Packed weight: 43.2kgs
Fully loaded weight: 43.5kgs
Service: Installation
