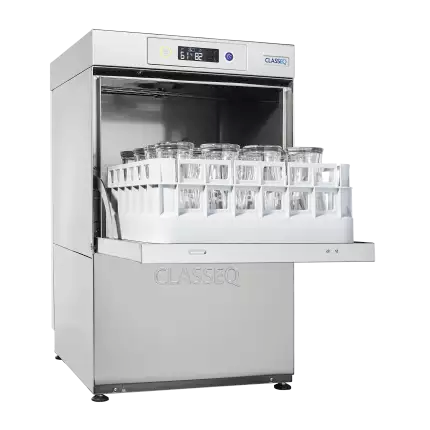

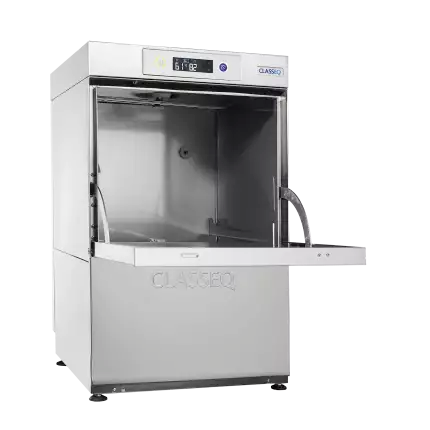

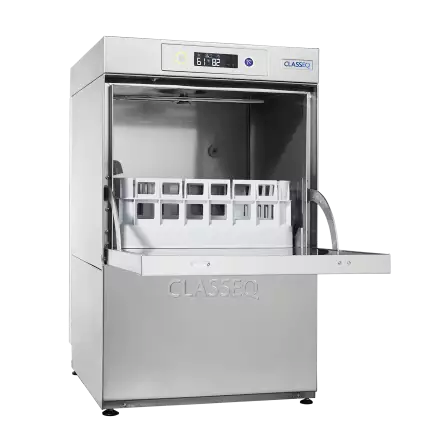

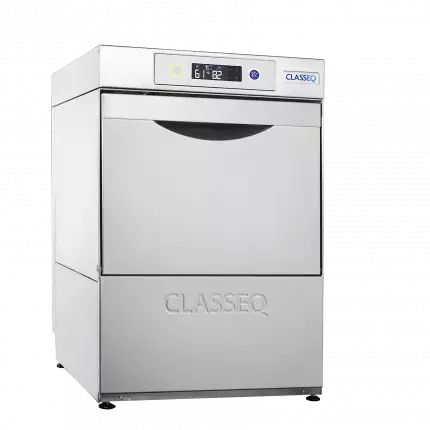

Classeq Glasswashers G400 450x760x517mm
Classeq Glasswashers G400 450x760x517mm
Regular price
£2,680.00 GBP
Regular price
Sale price
£2,680.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Technical Details - G400
Full technical specification of the G400.
Dimensions
Width: 450 mm
Height: 760 mm
Depth: 517 mm
Door Depth - Open: 865 mm
Basket Size: 400 x 400 mm
Rack Size: 400 x 400 mm
Clear entry height: 311 mm
Performance
Theoretical max racks per hour: 40
Glasses per rack : 16
Number of wash programmes: 2
Duration of wash programmes: 1.5 & 2 minutes
Glasses per hour: 640
Wash tank element: 2 kW
Rinse tank element: 2.6 kW
Wash tank capacity: 9.77 Litres
Rinse tank capacity: 6.5 Litres
Rinse water consumption at 3 bar: 3 Litres
Wash tank temperature: 55 °C
Rinse tank temperature: 70 °C
Wash pump power: 0.25 kW
Hydraulic Specifications
Water supply connection: G3/4" (3/4"Bsp)
Minimum allowed supply water pressure: 2-4 bar
Required water flow rate: 11L/min
Minimum incoming water temperature: 4 °C
Maximum incoming water temperature: 55°C
Gravity drain height (from machine base): 40mm
Pumped drain height (from machine base): 540mm
Drain Size: o40mm
Electrical Specifications
Standard Configuration
Amps Required: 13A (1 phase)
Standard Operating voltage: 220-240V / 1N~ / 50Hz
Total connected load: 2.85kW
Optional Configuration
Amps Required: 13A (3 phase)
Standard Operating Voltage: 380-415V / 3N-/50Hz
Total Connected Load: 6.58kW
Optional Configuration
Amps Required: 30A (1 phase)
Standard Operating Voltage: 220-240V / 1N~ / 50Hz
Total Connected Load: 6.58kW
Additional Info
Noise level: < 70 dB
Empty Weight: 32.kgs
Packed weight: 43.2kgs
Fully loaded weight: 43.5kgs
Service: Installation
