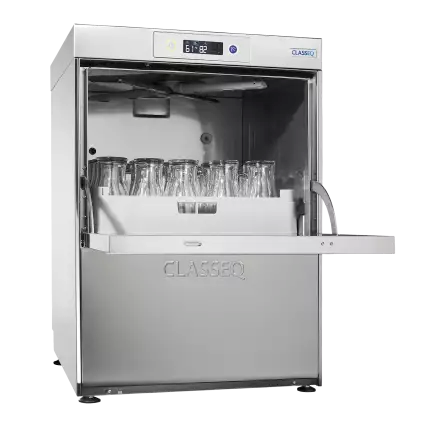

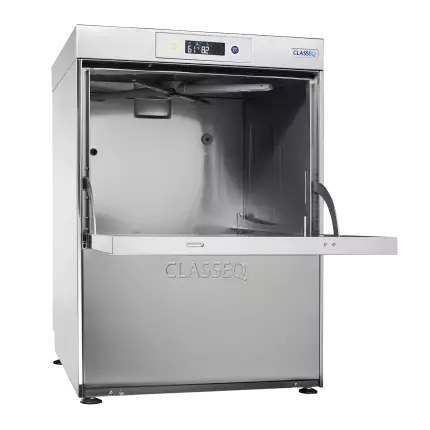

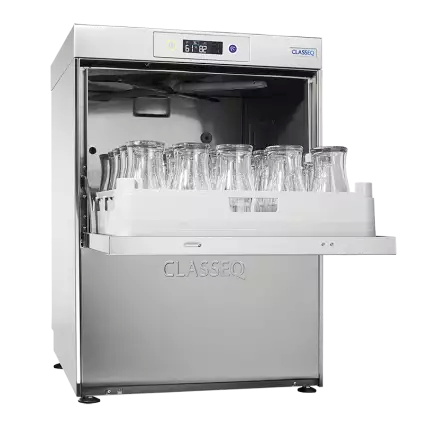

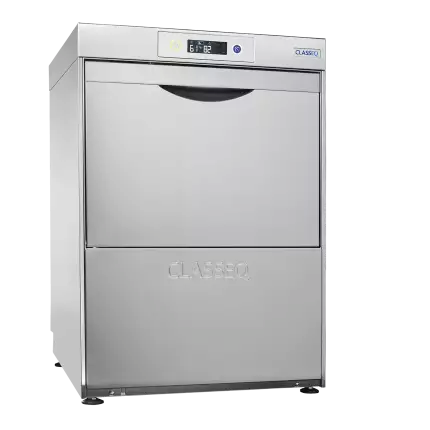

Classeq Glasswashers G500DUOWS 570x830x605mm

Classeq Glasswashers G500DUOWS 570x830x605mm

Regular price £5,648.00 GBP
Regular price Sale price £5,648.00 GBP
Sale Sold out
Tax included.

G500DUOWS - Technical Data at a Glance



A DUO Glasswasher with a 500mm x 500mm basket size. Wash up to 1,000 pint glasses an hour.

Dimensions:

Width: 570 mm
Height: 830 mm
Depth: 605 mm
Door Depth - Open: 987 mm
Basket Size: 500 x 500 mm
Rack Size: 500 x 500 mm
Clear entry height: 343 mm

Performance

Theoretical max racks per hour: 40
Glasses per rack : 25
Number of wash programmes: 2
Duration of wash programmes: 1.5 & 2 minutes
Glasses per hour: 1000
Wash tank element: 2 kW
Rinse tank element: 6 kW
Wash tank capacity: 14.33 Litres
Rinse tank capacity: 7.5 Litres
Rinse water consumption at 3 bar: 3 Litres
Wash tank temperature: 55 °C
Rinse tank temperature: 70 °C
Wash pump power: 0.58 kW
Rinse pump power: 0.19 kW
Water softener: optional

Hydraulic Specifications

Water supply connection: G3/4" (3/4"Bsp)
Minimum allowed supply water pressure: 0.5 bar (DUO) / 2-4 bar (DUOWS)
Required water flow rate: 11L/min (DUO) // 11L/min (DUOWS)
Minimum incoming water temperature: 4 °C
Maximum incoming water temperature: 55°C
Gravity drain height (from machine base): 40mm
Pumped drain height (from machine base): 600mm
Drain Size: o40mm

Electrical Specifications

Standard Configuration

Amps Required: 30A (1 phase)
Standard Operating voltage: 220-240V / 1N~ / 50Hz
Total connected load: 6.58kW

Optional Configuration

Amps Required: 13A (3 phase)
Standard Operating Voltage: 380-415V / 3N-/50Hz
Total Connected Load: 6.58kW

Optional Configuration

Amps Required: 12A (1 phase)
Standard Operating Voltage: 220-240V / 1N~ / 50Hz
Total Connected Load: 2.58kW
Additional Info
Noise level: < 70 dB
Empty Weight: 54.7kgs
Packed weight: 66.6kgs (DUO) / 68.7kgs (DUOWS)
Fully loaded weight: 75.2kgs
Service: Installation
