Classeq | SKU:
P500
Classeq Pass Through Dishwasher P500 635x1460x712mm
£3,841.67 ex. VAT
£4,610.00
£7,996.00
Unit price
/
Unavailable
£3,386.00 off
Classeq Pass Through Dishwasher P500 635x1460x712mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

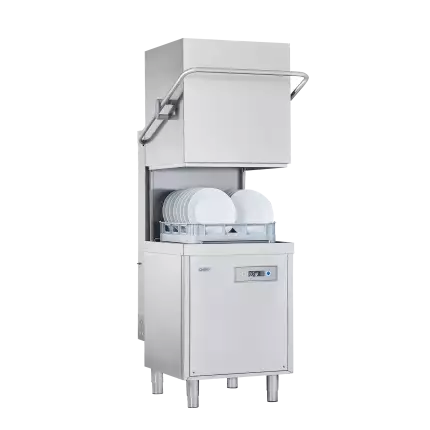

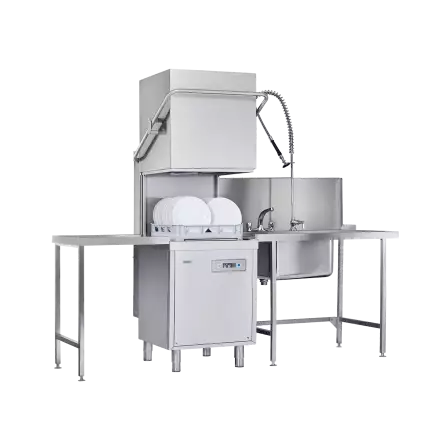

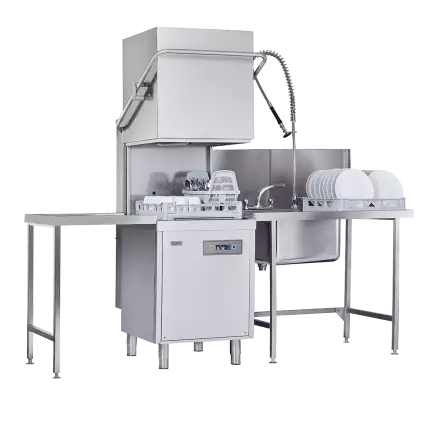

Classeq Pass Through Dishwasher P500 635x1460x712mm
£4,610.00
£7,996.00
Unit price
/
Unavailable
Description
Description
Technical Details - P500
Dimensions
Width: 635 mm
Height: 1460 mm
Depth: 712 mm
Height - Hood Open: 1955-2010mm
Height - Hood Closed: 1460-1515mm
Maximum clear entry height: 440 mm
Water inlet height floor level: 255-310mm
Drain height floor level: 0-700mm
Drain Size: o40mm
Basket Size: 500 x 500 mm
Performance
Theoretical max racks per hour: 40
Plates per rack : 18
Number of wash programmes: 3
Duration of wash programmes: 1.5, 3 & 5 minutes
Noise level: < 70 dB
Net weight: 130kg
Wash pump size: 0.58kW
Wash pump capacity: 380 Ltrs/min
Wash tank heating: 4.05kW
Wash tank capacity: 28L
Wash tank temperature: 55 °C
Rinse boiler capacity: 7.5L (DUO) / 12L (DUOWS)
Rinse boiler temperature: 82°C
Rinse water consumption at 2 bar: 3 Ltrs
Hydraulic Specifications
Water supply connection: G3/4" (3/4"Bsp)
Required water pressure : 2-4 bar
Required water flow rate: 11L/min
Required Water Flow Rate with integral water softener: 4 L/min
Electrical Specifications
Operating voltage - Standard: 380-415AC/50/3N
Operating voltage - Optional : 220-240AC/50/1N
Amps required - 3 Phase: 40°C
Water fed @ : 10°C
Rinse Boiler Heating
Everyday Use - P500A-12 (380-415AC/50/3N): 6 kW
Everyday Use - P500A-30 (220-240AC/50/1N): 6 kW
Intermediate Use - P500A-16 (380-415AC/50/3N): 8.64 kW
Intensive Use - P500A-22 (380-415AC/50/3N): 12 kW
Total Connected Load
Everyday Use - P500A-12 (380-415AC/50/3N): 6.68 kW
Everyday Use - P500A-30 (220-240AC/50/1N): 6.68 kW
Intermediate Use - P500A-16 (380-415AC/50/3N): 9.32 kW
Intensive Use - P500A-22 380-415AC/50/3N: 12.68 kW
